ÅngströmBond® AB9001MTUP Thixotropic Clear Epoxy, Room Temperature & Heat Cure (2.5g)
AB9001MTUP-2.5G

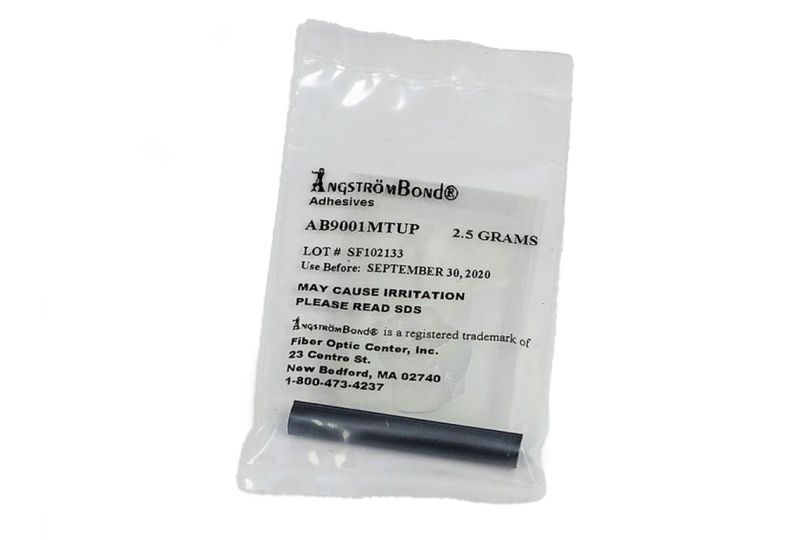

ÅngströmBond® AB9001MT Unpigmented Room Temperature Cure, 2-Part Epoxy, 2.5 Gram Packet
FOC SHELF LIFE GUARANTEE: MINIMUM 5 MONTHS AT TIME OF SHIPPING
FOC SHELF LIFE GUARANTEE: MINIMUM 5 MONTHS AT TIME OF SHIPPING
The ÅngströmBond® 9001MTUP Clear Epoxy is a two-part, room temperature and heat curing adhesive designed specifically for use in MT and MTRJ fiber optic connector assemblies. This clear, non-sagging thixotropic epoxy allows for easy fiber optic polishing. It produces low stress during curing, thereby eliminating fiber cracking in both single and multimode fiber optic connectors. Available in a 2.5 gram packet.
Additional Features:
Additional Features:
- Excellent choice for sealing and encapsulating small units
- Strong bond to glass, ceramic, plastics and metals
- High impact, moisture, and chemical resistance
- Color: Clear
- Mixed Viscosity @ 25°C: 50,000-55,000 cPs
- Service Temperature Range: -65°C to 130°C; -85°F to 266°F
- Glass Transition Temperature, Tg: 93°C (degree celsius); 199.4°F (degree Fahrenheit)
- Shore D Hardness: 78
- Working Life: 30-45 Minutes
- Minimum Cure Schedule:
- @25°C at 18 Hours
- @65°C at 1 Hour
- @90°C at 15 Minutes
Product Change Notification:
As part of our product change notification requirements, Fiber Optic Center is to notify our customers of any changes in our product packaging. Fiber Optic Center is making the following improvement to the bi-pack material sleeve packaging of AB9001MTUP-2.5G. At Fiber Optic Center, we believe this change can ensure an even higher level of product quality and consistency, which is good news for our industry.
1. Burst pouch / Burst seal instead of dividing clip seal – The burst seal bi-pack is more environmentally friendly, since there is no plastic dividing clip. Additionally, the two parts of the burst seal are separated by a seal, so there is no chance for the material to migrate and mix. In rare cases when the dividing clip was not fastened properly, it allowed the resin and hardener to leak under the clip, which prematurely started the epoxy’s pot life. With the burst seal bi-pack, this is not a concern. Please note Burst Pouch Instructions: https://focenter.com/foc-tips-instructions-for-burst-pouch-bi-packs/
Please note that although there is a change in the bi-pack sleeve, the following remains unchanged:
Samples are available upon request.
NEW Burst seal packaged bi-packs will be provided after depleting our current style stock.
If you have questions related to AngstromBond® or the new packaging, or any other matter on which we may be of assistance, please feel free to contact Kelly Barker, Business Development Epoxies Fiber Optic Center: kbarker@focenter.com
As part of our product change notification requirements, Fiber Optic Center is to notify our customers of any changes in our product packaging. Fiber Optic Center is making the following improvement to the bi-pack material sleeve packaging of AB9001MTUP-2.5G. At Fiber Optic Center, we believe this change can ensure an even higher level of product quality and consistency, which is good news for our industry.
1. Burst pouch / Burst seal instead of dividing clip seal – The burst seal bi-pack is more environmentally friendly, since there is no plastic dividing clip. Additionally, the two parts of the burst seal are separated by a seal, so there is no chance for the material to migrate and mix. In rare cases when the dividing clip was not fastened properly, it allowed the resin and hardener to leak under the clip, which prematurely started the epoxy’s pot life. With the burst seal bi-pack, this is not a concern. Please note Burst Pouch Instructions: https://focenter.com/foc-tips-instructions-for-burst-pouch-bi-packs/
Please note that although there is a change in the bi-pack sleeve, the following remains unchanged:
- Part Number
- Part A and Part B material
- Plastic outer packaging that contains the bi-pack material sleeve
Samples are available upon request.
NEW Burst seal packaged bi-packs will be provided after depleting our current style stock.
If you have questions related to AngstromBond® or the new packaging, or any other matter on which we may be of assistance, please feel free to contact Kelly Barker, Business Development Epoxies Fiber Optic Center: kbarker@focenter.com
The ÅngströmBond® AB9001MTUP Thixotropic Clear Epoxy, Room Temperature & Heat Cure (2.5g) will be at the following trade show(s)*:
- ECOC
- ANGA COM
