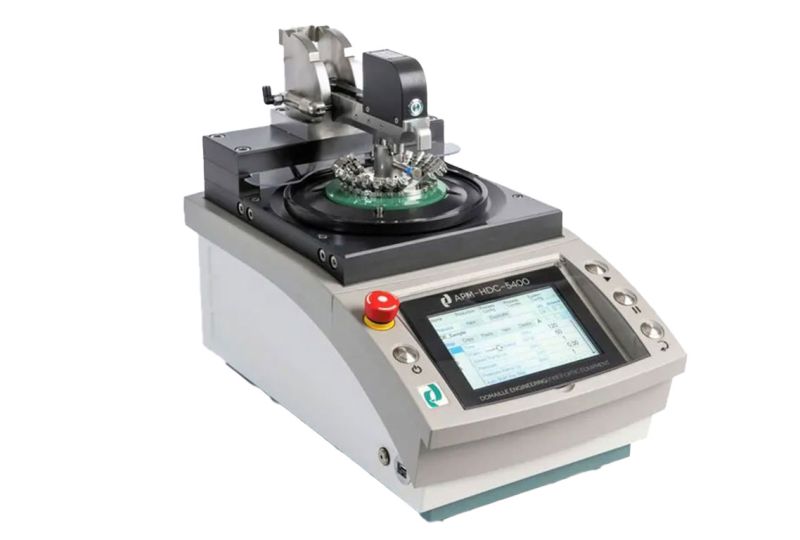

Domaille APM-HDC-5400 Programmable Fiber Optic Polishing Machine

APM-HDC-5400

Domaille Engineering PC-Based Programmable Polishing Machine w/Automated Process Control and Standard Accessories Including Drip Tray (PM12065F), Drip Tray Bracket (PM21025), Locking Collar (PM22097), Splash Guard (PM12066F) and a set of 70, 80 and 90 durometer locking rubber pads.

The Domaille APM-HDC-5400 is a high-precision, advanced fiber optic polishing machine designed to provide reliable, automated polishing for fiber optic connectors. It retains all legacy features from previous models, including PC-based controls with a 7” touchscreen, programmable polishing pressure force up to 24 lbs., Micro-G® controls, and bi-directional platen rotation and more! These features ensure precise control over polishing speed, pressure, soft start, and auto-calibration, and are combined with several new customer-driven enhancements for improved polishing performance.

New Features

Abrasave+ software features for maximization of lapping film life
Auto-Start on polishing steps allows users to polish with multiple pressures and speeds for a single polishing film which is great for denubbing & roughing epoxy beads
Improved overarm handle for better ergonomics, reliability, and quality
Illuminated arm push button displaying machine status by color code
Enlarged overarm with beveled sides to maintain accuracy while adding cable clearance
Redesigned overarm latch shaft for reduced friction and improved reliability
Integrated Micro-G controls for “zero” pressure polishing to specific lengths
Built-in alert horn for operator notifications

Datasheet

Domaille APM-HDC-5400 Programmable Fiber Optic Polishing Machine - Datasheet

Product Video

Video for the Domaille APM-HDC-5400-8 High Vol Programmable Polishing Machine Coming Soon!

Interested in a Domaille Polishing machine?

Updates

Please note Product Change Notification:

Effective May 2025, the Domaille APM-HDC-5400 Programmable Fiber Optic Polishing Machine will include the following improvements:

Increased screen size to 10.1”.
6x more powerful system (CPU).
No loading/waiting screens.
Addition of swiping.
Removed need for a Power On button; disabling the EPO achieves the same effect.
Audio now delivered through HMI speaker.
Play/Pause button to both play and pause a step.
Reset button now in software.
Platen indexing manually executed according to recipe parameters, if enabled, in production and process configuration.
Ability to copy and paste steps between recipes in process config.
Addition of screen in system config to configure and experiment with platen indexing.
Removal of Max Quantity setting and addition of quantity edited via textbox and automatically enforced limits.
Removal of dedicated screen for entering text and addition of keyboard with an X for cancel and a checkmark for confirmation.
Process config tab D, tolerance tab, now always shown (was previously hidden).
Automatic Load Cell calibration consistently takes under 30 seconds.

Download available Here

If you have any questions, contact the FOC sales staff!

Trade Shows

The Domaille APM-HDC-5400 Programmable Fiber Optic Polishing Machine will be at the following trade show(s)*:

ANGA COM
ECOC
OFC
SPIE Photonics West

*subject to change, please confirm with the Fiber Optic Center team
