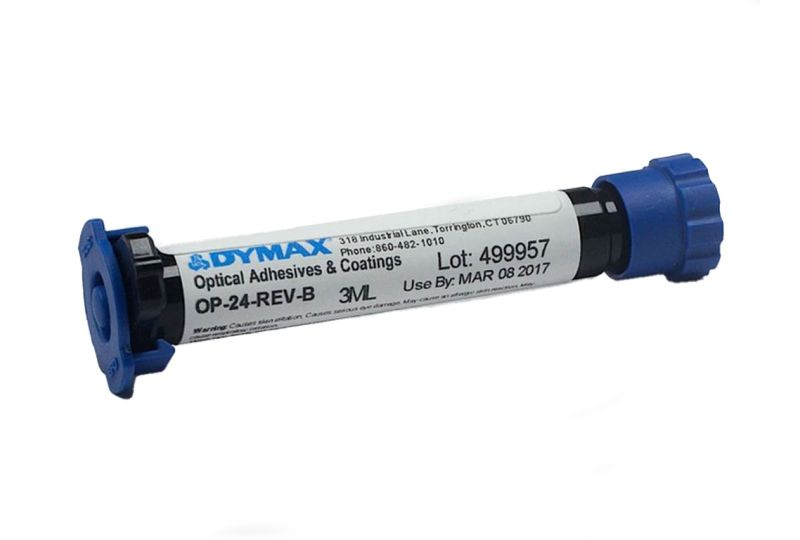

Dymax OP-24-REV-B Optical Adhesive, Optically Clear, Hybrid UV & Heat Cure - 3ml Syringe

The Dymax OP-24-REV-B Hybrid UV & Heat Cure Adhesive is a high-performance, dual-cure optical adhesive. This UV adhesive becomes tack-free in seconds under UV light, enabling fast production and efficient processing. It’s ideal for bonding glass lenses to metal fixtures or backings. Heat can be applied as a secondary cure for shadowed areas after the UV cure is complete. This UV adhesive is also RoHS-compliant, meeting Directive 2015/863/EU for environmental responsibility. The adhesive is packaged in a convenient 3ml syringe.

Features & Benefits:

• UV/Visible light-cure in seconds
• Impact Resistant
• Excellent Adhesion to Metal and Glass
• Substrates Bonded: Phenolic, ABS, Metals and Glass

Uncured Properties:

• Optically Clear Adhesive
• Viscosity: 5,000 cP

Cured Properties:

• Linear Shrinkage: 0.31%
• Shore D Hardness: D80
• Glass Transition Temperature, Tg: 70°C (158°F)
• Coefficient of Thermal Expansions(CTE):
  • α1: 55µm/m/°C
  • α2: 206µm/m/°C
• Refractive Index (20°C): 1.52
