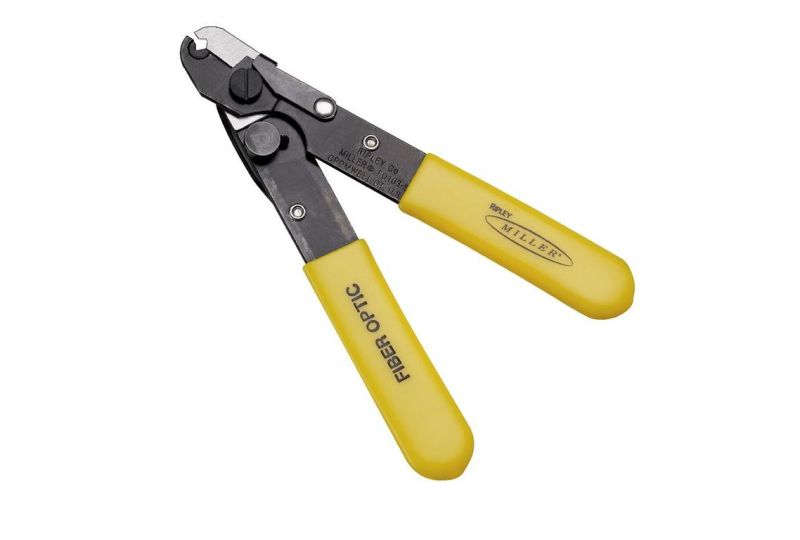

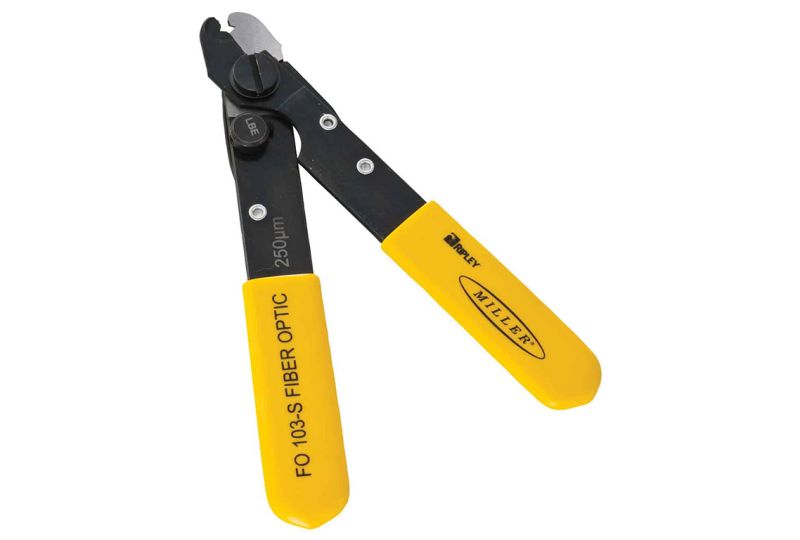

Ripley® Miller FO 103-S Fiber Stripper for 125/250µm Buffer Coating

The Ripley^® Miller FO 103-S 1-Hole Fiber Optic Stripper is a fiber technician favorite, designed to strip 250 µm buffer coating to expose 125 µm fiber cladding. Manufactured to precise tolerances, the diameter hole and V-opening in the blade ensure accurate, clean stripping every time without nicks or scratches. The pivot pin, spring, and precision handle with stripping reference enhance both functionality and durability.

Operating the tool is simple: Insert the fiber into the tool’s opening. Close the tool squarely around the fiber, then draw it along while applying light thumb pressure, keeping the tool perpendicular. This delivers a consistent, precise strip every time.

Features:

• Strip 250 µm (0.0098") buffer coating from 125 µm (0.0049") fiber
• Singular hole design efficiently strips buffer coating from the bare fiber
• Compact, factory-set tool requiring no adjustment
• Precise hole and V-opening for accurate coating removal
• Prevents scratching or nicking of optical fiber

Compatible with the following Premises Fiber Cables:

• Interconnect (Simplex and Duplex), Distribution, MDU and MPAC
• Riser / Breakout
• Micro Duct
• Ribbon Fiber Distribution

Compatible with the following Outside Plant (OSP) Fiber Cables:

• Loose Tube, Single or Multi-Jacket All Dielectric (ADSS)
• Loose Tube, Single or Multi-Jacket Armored
• Single Loose Center Tube Armored
• Air-Blown Micro Fiber
• Air-Blown WTC
• High Fiber Count Ribbon (432–6912F)
• FTTH Flat Drop (Fiber-to-the-Home)
• FTTH Flat Drop with Messenger
• FTTH ULW Drop

Specifications:

• Miller Part#: 80355
• Stripping Holes: 1
• Length: 5.375ʺ (137 mm)
• Weight: 2.5 oz (71 g)
