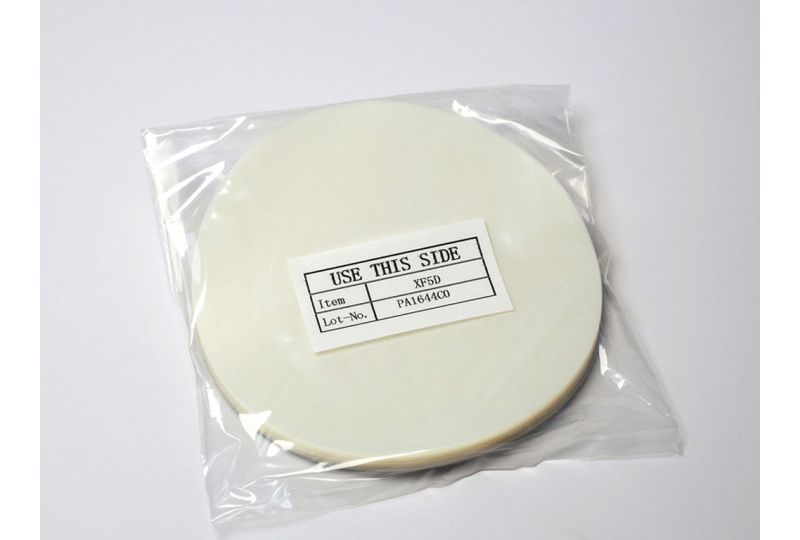

Seikoh Giken 5" SiO2 Final Polish Lapping Film
XF5D
Seikoh Giken 5" Silicon Dioxide Final Polish Lapping Film. 100 discs per pack
The Seikoh Giken Silicon Dioxide Final Polish Lapping Film maintains ferrule geometry while improving return loss and endface surface quality. Using a silicon dioxide abrasive, the film polishes the ceramic ferrule and glass fiber at nearly the same rate, helping maintain consistent fiber height throughout the film’s service life. It is suitable for both 2.5 mm and 1.25 mm polishing processes.
Features:
Features:
- Maintains stable fiber height throughout film life for 2.5 mm and 1.25 mm polishing
- Produces a scratch-free finish on the end face of fiber optic connectors
- Easy to clean using only purified water
- Designed to meet GR-326 endface geometry requirements
- Longer service life helps reduce overall polishing costs
Specifications:
- Film Color: Translucent
- Diameter: 127mm, 110mm, 70mm
- Particle Type: Silicon dioxide
- Application: 2.5mm and 1.25mm zirconia ferrules
- Film Life: 5 to 10 times
- Quantity: 100 discs
- Non-PSA Backed Film
